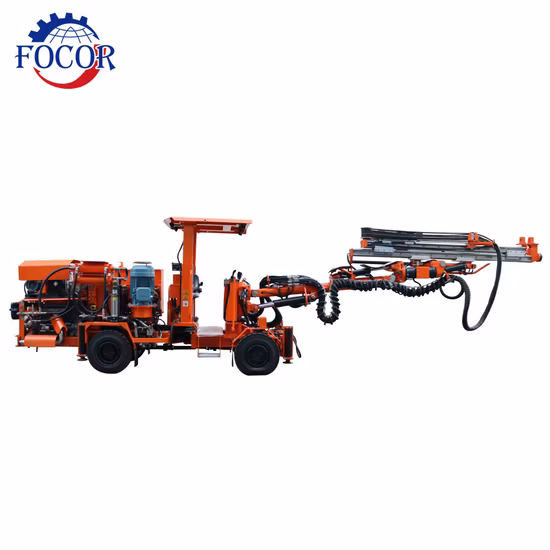

Fk20-1bcdl Hydraulic Single Boom Drilling jumbo Name: Single boom Hydraulic Face drilling rig Model: FK20-1BCDL Power of
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | Fk20-1bcdl |
Drilling Way | Compound |
Transport Package | Container / Truck |
Specification | 4 m2 |
Trademark | FOCOR |
Origin | China |
Production Capacity | 150 Sets/Year |
Product Description
Fk20-1bcdl Hydraulic Single Boom Drilling jumboBrief Introduction |
Name: Single boom Hydraulic Face drilling rig
Model: FK20-1BCDL
Power of Diesel engine: 52KW/63KW
Power of Electric motor: 55 KW
Section(b×h): 2.5×2.5~6.0×6.0 m
Dimensions(L×W×H): 11200×1910×2200 mm
Product Introduction |
FK20-1BCDL is a single boom electro-hydraulic drilling jumbo for fast and accurate drilling for small-vein underground mining and tunneling and construction applications. The jumbo is suitable for tunnel with coverage area max. up 6.0-meter x 6.1 meters with 15°gradeability at maximum load on four drive wheels. Drilling hole diameter range from 32mm to 76mm. The drill boom can rotate 360 degrees and is equipped with automatic anti-jamming function. It has a compact structure, stable performance and strong climbing ability. It is suitable for drilling operations on working faces, roofs, side panels and bottom plates with a section of 8-45m². Not only it can drill blast holes, but also drill bolts very conveniently. The Jumbo is equipped with new model FKG550 hydraulic rock drill, the impact frequency is 50-68Hz higher than other similar brand.
FK20-1BCDL single boom surface mine drilling rig machine
Chassis Diesel engine: Deutz F5L912W Power rating at 2300rpm: 52kW Torque at 1550rpm: 258N.m Fixed seat for tramming: Yes Fuel oil tank volume: 60L Articulated Steering: ± 41° Travelling speed: 10 Km/h Gradeability: 15° Horn beacon and reverse: Yes" Four-wheel drive: Yes FOPS cabin: Yes Hydrostatic power steering: Yes" Hydrostatic transmission: Yes Front axle: Dana112 Rear axle: Dana112+311 Clearance outside axles: 15° Hydraulic jacks, front: 2 extendable Hydraulic jacks, rear: 2 extendable Service brakes: 2 separate circuits Emergency & parking brakes: SHAR Electric system: 24V Batteries: 2 x 12V, 70Ah | Dimensions Width: 1910mm Height roof (up/down): 2200/2900mm Length: 11200 mm Weight: 11500Kg |
Rock Drill Model: FOR550 Shank adapter: R32 R38 T38 Impact power: 24KW Impact rate: 60-75 HZ Impact pressure: 17-21 Mpa Feed impact force: ≤425 J Hydraulic Pressure max: 130 bar Rotation system: Separate rotation Rotation speed: 0-300 rpm Rotation torque, max.: 980 Nm Water consumption: 50 L/min Lub. Air consumption: 5 L/s Hole diameter: 32mm-76mm Length without shank: 600mm Height over drill center: 88mm Weight: 190 Kg Sound Level: <110 dB(A) | |
Boom Model: FKZB4 Parallel holding: Complete Boom extension: 1250mm Feed roll-over: ±180° Max. Lifting angle: +65°/-30° Max. Swinging angle: ±35° Weight, boom only: 1750 kg | Feed Model: FKT650 Total length: 5850 mm Feed extension: 1250mm Drill rod length: 3700 mm Hole depth: 3500 mm Feed force, max.: 15KN |
Water System Pump type: Booster Pump Water pressure: 8-12 bar Max. Capacity: 80L/min Water pump power: 7.5kw | Air System Air compressor: YES Working pressure: 2-8 bar Working flow: 10 L/s (6 bar) Air pressure gauge: Yes |
Hydraulic System Hydraulic pump group: 1 set Pumps unloaded at start: Yes System pressure, max: 200 bar Oil tank, max.: 165 L Refueling filtration accuracy: 10 um Low oil level indicator: Yes | Hydraulic System Oil temperature gauge on oil tank: Yes Manual oil filing pump: Yes Oil filter indicator: Yes Water cooled oil: Yes Filtration: Yes Mineral hydraulic oil: Yes |
Electric System Motor model: ABB YX3 250M-4 Power rating: 55 KW Voltage: 220-1000 V Frequency: 50-60 Hz Start type: Triangle/Star/Direct start Thermal overload protection: YES Shock timer: YES | Digital voltage/current meter: YES Phase sequence indicator: YES Leakage indicator: YES Battery charger: YES Transformer capacity: 1.5 Kva Cable coil (diameter): 660/1195 mm |
Remarks: We can choose different parts according to different condition of the underground mining or requirement from our customers, we will make the best proposal with reasonable price.
